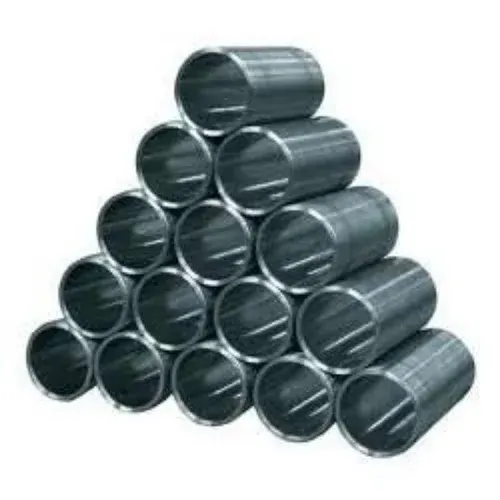

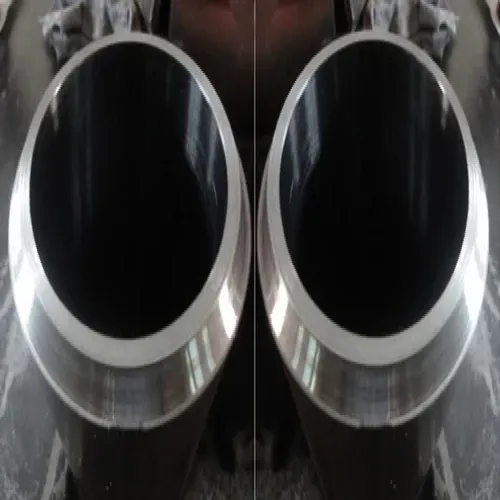

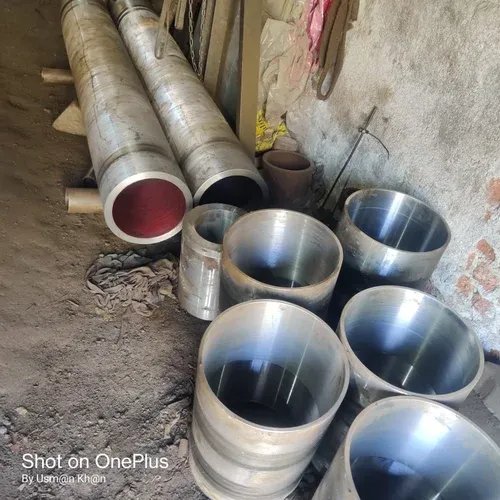

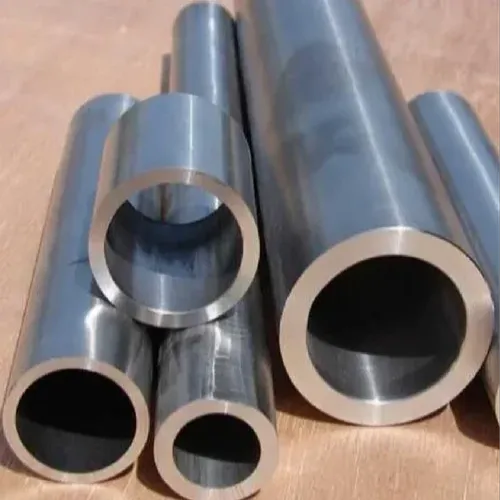

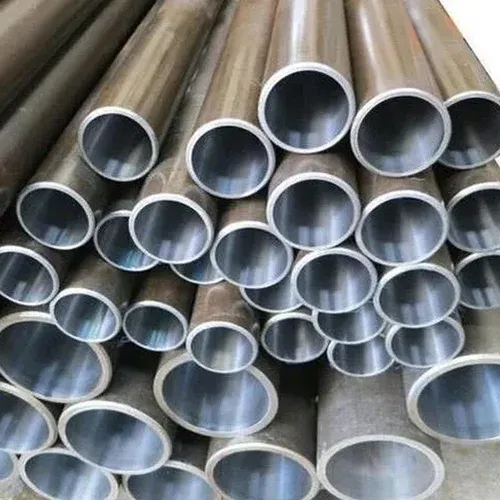

Stainless Steel Honed Tubes
View Hydraulic Cylinder Tube & Pnematic Cylinder Tube Weight Chart

Stainless Steel Honed Tubes

Hydraulic Cylinder Tube

Pnematic Cylinder Tube
Manufacturer of Stainless Steel Honed Tubes in India
Table of Content
- Stainless Steel Honed Tubes Spec Table
- Hydraulic Cylinder Tube Types
- Chemical Structure of SS Honed Pipes
- Mechanical Behaviour of Ferratic Stainless Steel Honed Tubes
- Equivalent of SS Bright Honed Tubes
- Hydraulic Cylinder Honed Tube Standards
- Quality Standards of SS 317 Bright Honed Tubes
- Tolerance Of Inside Diameter of Honed Hydraulic Tubes
- Excentricity of 316 Stainless Steel Hydraulic Honed Tube
- ASTM A519 1020 Honed Seamless Steel Tube Product Processing
- Products Specification of Stainless Steel Honed Tubes
- Features of Pnematic Cylinder Tube
Stainless Steel Honed Tubes Spec Table
Bore Diameter | 28 MM to 900 MM (35.43307 inches) |
Length | Upto 6 Mtrs |
Internal Diameter Accuracy | H7, H8, H9 |
Internal Rougness | RA0.1 μm - RA0.2μm |
Hydraulic Cylinder Tube Types

Seamless Stainless Steel Honed Tube

Hydraulic Cylinder Honed Tube

316 Stainless Steel Hydraulic Honed Tube

Honed Hydraulic Tubes

Hard Chrome Plated Cylinder Tubes

SS 317 Bright Honed Tubes

Honed Cylinder Tube

ASTM A519 1020 Honed Seamless Steel Tube
Chemical Structure of SS Honed Pipes
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
304 | min. | 18.0 | 8.0 | |||||||||
max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
304L | min. | 18.0 | 8.0 | |||||||||
max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
SS 310 | 0.015 max | 2 max | 0.015 max | 0.020 max | 0.015 max | 24.00 26.00 | 0.10 max | 19.00 21.00 | 54.7 min | |||
SS 310S | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 0.75 max | 19.00 21.00 | 53.095 min | |||
SS 310H | 0.04 0.10 | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 19.00 21.00 | 53.885 min | ||||
316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
317 | 0.08 max | 2 max | 1 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 57.845 min | ||||
SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 11.00 15.00 | 57.89 min | |||
SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 5(C+N) 0.70 max | |||
SS 321H | 0.04 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 4(C+N) 0.70 max | |||
347/ 347H | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 20.00 | 9.0013.00 | |||||
410 | min. | 11.5 | ||||||||||
max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | 0.75 | |||||
446 | min. | 23.0 | 0.10 | |||||||||
max. | 0.2 | 1.5 | 0.75 | 0.040 | 0.030 | 30.0 | 0.50 | 0.25 | ||||
904L | min. | 19.0 | 4.00 | 23.00 | 0.10 | |||||||
max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 |
Refer SS Honed Cylinder Tube & Hard Chrome Plated Cylinder Tubes Dimensions
Mechanical Behaviour of Ferratic Stainless Steel Honed Tubes
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
304/ 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
310 / 310S / 310H | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
306/ 316H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
317 | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
321 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
347 | 8.0 g/cm3 | 1454 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi 71000 , MPa 490 | Psi 32000 , MPa 220 | 35 % |
Equivalent of SS Bright Honed Tubes
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
SS 304H | 1.4301 | S30409 | – | – | – | – | – |
SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
SS 310H | – | S31009 | – | – | – | – | – |
SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
SS 316H | 1.4401 | S31609 | – | – | – | – | – |
SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
SS 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
SS 321 | 1.4541 | S32100 | SUS 321 | – | – | – | X6CrNiTi18-10 |
SS 321H | 1.4878 | S32109 | SUS 321H | – | – | – | X12CrNiTi18-9 |
SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
SS 347H | 1.4961 | S34709 | SUS 347H | – | – | – | X6CrNiNb18-12 |
SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Hydraulic Cylinder Honed Tube Standards
Our Material | Material No. | Similar International Grade | Suitable for… |
JIS G3445 STKM13C |
ASTM MT1020 / BS ERWC3 / DIN ST45 / NF TU37b / ISO TS4 | Carbon steel tubes for machine structural purpose | |
DIN 2391 ST52 | 1.0580 |
JIS STKM19A / ASTM 1524 / EN E355 / ISO TS18 | Mechanical and automotive engineering |
ST52 BK+S | 1.0580 | Low deformability without heat treatment after cold forming process and stress-relief annealing | |
DIN 2393 ST52.3 | 1.0570 | ISO Gr.1 | Construction of chemical plant, pipe work and mechanical engineering use |
ASTM A106 | 1.0405 | JIS STPT410 / BS HFS410 / DIN ST45.8 / NF TU42c | Seamless carbon steel pipe for high temperature service Suitable for bending, flanging, welding and similar forming operations |
Quality Standards of SS 317 Bright Honed Tubes
- DIN 2391 Seamless Precison Steel Tubes
- EN10305 Steel Tubes for Precision Applications Seamless Cold Drawn Tubes
- ASTM A519 Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing
- JIS G3445 Carbon Steel Tubes for Machine Structural Purposes
Supplier of 304 Stainless Steel Seamless Honed Tubes in Mumbai
Tolerance Of Inside Diameter of Honed Hydraulic Tubes
Inside dia - specified mm |
10~18 | 18~30 | 30~50 | 50~80 | 80~120 | 120~180 | 180~250 | 250~315 |
H7 | +0.018 -0 |
+0.021 -0 |
+0.025 -0 |
+0.03 -0 |
+0.035 -0 |
+0.04 -0 |
+0.046 -0 |
+0.052 -0 |
H8 | +0.027 -0 |
+0.033 -0 |
+0.039 -0 |
+0.046 -0 |
+0.054 -0 |
+0.064 -0 |
+0.072 -0 |
+0.081 -0 |
H9 | +0.043 -0 |
+0.052 -0 |
+0.062 - 0 |
+0.074 -0 |
+0.087 -0 |
+0.1 -0 |
+0.115 -0 |
+0.13 -0 |
Excentricity of 316 Stainless Steel Hydraulic Honed Tube
Outer Diameter | Excentricity |
---|---|
125 mm | 5 % |
> 125 mm | 7 % |
ASTM A519 1020 Honed Seamless Steel Tube Product Processing
Processing Way | Cylinder Barrel ID (mm) | Max Length (mtr) | Straightness (mm/mtr) | ID Tolerance | Wall Thickness Tolerance (mm) | ID Roughness (μm) |
Cold Drawn | 40-320 | 12 | 0.2-0.5 | H8-H10 | ±5% | 0.8-1.6 |
Cold Rolled | 12-100 | 12 | 0.2-0.5 | H8-H10 | ±5% | 0.8-1.2 |
Cold Drawn+Honed | 40-500 | 8 | 0.2-0.3 | H7-H9 | ±5% | 0.2-0.8 |
Cold Drawn-SRB | 40-400 | 7 | 0.2-0.3 | H8-H9 | ± 5% | 0.2-0.4 |
Deepth Drilling-Honed | 320-1100 | 8 | 0.2-0.3 | H7-H9 | ±8% | 0.2-0.8 |
Deepth Drilling-SRB | 320-600 | 7 | 0.2-0.3 | H8-H9 | ±8% | 0.2-0.4 |
Products Specification of Stainless Steel Honed Tubes
External Diameter Accuracy: f8 |
External Surface Roughness:Ra0.2 ~ 0.4um |
Hard Chrome Plated Thickness:20 Micron +/-10% |
Internal Diameter Accuracy:H7, H8, H9 |
Internal Surface Roughness:Ra0.2~0.8um |
Material: JIS STKM 13C / DIN ST 52.3 BK+S / JIS STKM 13A / SAE A106 |
Other Specification and requirement can be customers make. |
Check Pressure Rating of Seamless Stainless Steel Honed Tube. Ready Stock of 347 SS Bright Honed Tubes
Features of Pnematic Cylinder Tube
- Smooth inside surface, the inside surface roughness could be better than Ra 0.4um.
- High precision tolerance, the tolerance of honed steel tubing ID could be H7, H8, H9 accordidng to customers request.
- Durable in use, as the first class quality
