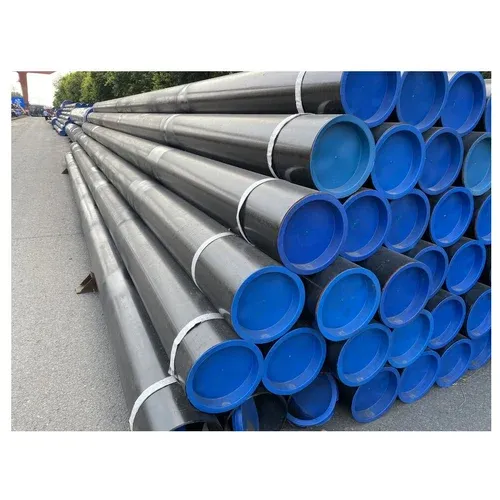

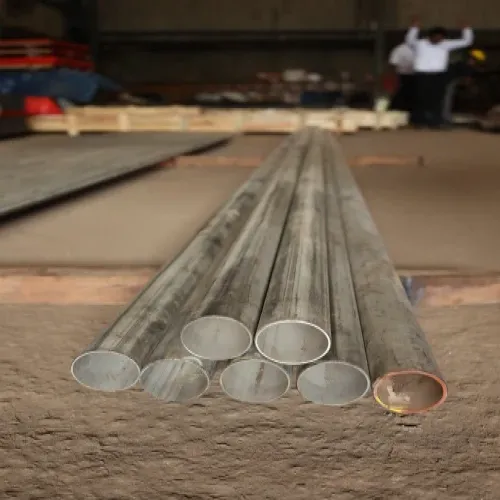

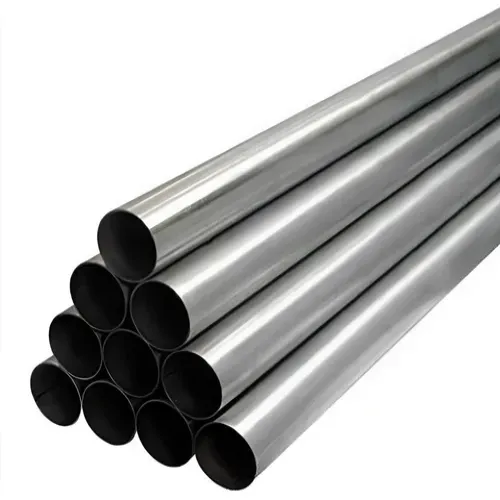

High Frequency Welded Pipe
Leading HFI ERW Line Tube Supplier
High Frequency Welded Pipe
HFI ERW Line Tube
High Frequency Induction Welded Pipe
Check High Frequency Induction Welded Pipe dimensions tolerances
Table of Content
Standard Specification of High Frequency Welded Pipe
| Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
|---|---|
| Outer Dimensions | 4.0mm – 60.0mm |
| size | 5.0 - 1219.2 mm |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | Single Random, Double Random, Standard & Cut length Pipe |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
| Form | are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Types | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW |
| End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| manufacturing Technique | Cold drawn, hot drawn, bright annealed, solid solution, hot extruding |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
Various Types of HFI ERW Line Tube
High Frequency Welded Tube
high frequency welded finned tubes
HFI Welded Pipe
High Frequency Electric Resistance Welded Pipe
High Frequency ERW Line Pipe
API 5L Oil High Frequency Spiral Welded Tube
High Frequency Welding Steel Pipe
Stainless Steel High Frequency Pipe
Buy High Frequency Welded Finned Tubes in different Sizes
Size Range of HFI Welded Pipe
| Out Diameter | 1/2″-24″ |
| Wall Thickness | 1.65-20mm |
| Length | 3m-12m |
Available Standards of High Frequency Welded Tube
- ASTM 5L
- ASTM A53
- ASTM A178
- ASTM A500/501
- ASTM A691
- ASTM A252
- ASTM A672
- EN 10217
Ready Stock of High Frequency Electric Resistance Welded Pipe
Small diameter HFW steel pipe
| Out diameter | Sch 5 | Sch 10 | Sch 40 | ||||
| Inch | mm | Thickness | Kg/mtr | Thickness | Kg/mtr | Thickness | Kg/mtr |
| 1/2″ | 21.3 | 1.65 | 0.81 | 2.11 | 1.01 | 2.77 | 1.29 |
| 3/4″ | 26.7 | 1.65 | 1.03 | 2.11 | 1.30 | 2.87 | 1.71 |
| 1″ | 33.4 | 1.65 | 1.31 | 2.77 | 2.12 | 3.38 | 2.54 |
| 1 1/4″ | 42.2 | 1.65 | 1.93 | 2.77 | 3.15 | 3.68 | 4.11 |
| 1 1/2″ | 48.3 | 1.65 | 1.93 | 2.77 | 3.15 | 3.68 | 4.11 |
| 2″ | 60.3 | 1.65 | 2.42 | 2.77 | 3.98 | 4.81 | 5.31 |
| 3″ | 88.9 | 2.11 | 4.58 | 3.05 | 6.54 | 5.49 | 11.45 |
| 3 1/2″ | 101.6 | 2.11 | 5.25 | 3.05 | 7.52 | 5.74 | 13.77 |
| 4″ | 114.3 | 2.11 | 5.25 | 3.05 | 7.52 | 5.74 | 13.77 |
| 5″ | 141.3 | 2.77 | 9.50 | 3.40 | 11.74 | 6.55 | 22.10 |
| 6″ | 168.3 | 2.77 | 11.47 | 3.40 | 14.04 | 7.11 | 28.68 |
| 8″ | 219.1 | 2.77 | 14.99 | 3.76 | 20.25 | 8.18 | 43.16 |
Differences between ERW and HFW Steel Pipe
ERW welding process refers the heat generated by the resistance to current flow that pass through the jointed metals While HFW welding process is not the same case with the high-frequency process since it’s only a section of the steel metals is heated by the induction of electric coil. High-frequency is generated by either AC or DC current. The electric current that pass through the entire conductor is at 50/60 Hz in ERW Welding Process While in HFW Welding Process it ranges to frequency rages of 100-600 KHz
High Frequency Erw Line Pipe & Tube Supplier
Applications of High Frequency ERW Line Pipe
- Food & Dairy Plants
- Paper Industries
- Oil & Gas Exploration
- Desalination Plant
