Stainless Steel Rectangular Pipe

ASTM A312 304 Seamless Hollow Tube Suppliers

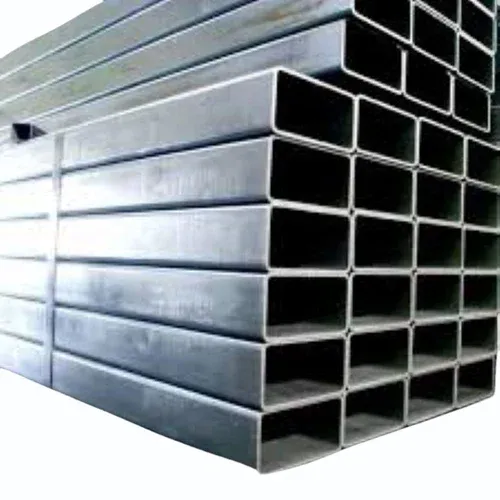

Stainless Steel Rectangular Pipe

ASTM A312 304 Seamless Hollow Tube

SS 304 Rectangular Tube

Purchase SS 304 Rectangular Tube in Size Range of 50 x 25 to 450 x 250 MM

Table of Content

Spec Chart of Stainless Steel Rectangular Pipe
Types of ASTM A312 Seamless Hollow Tube
Get Price list of Stainless Steel Welded Rectangular Pipe
Chemical Properties of SS Rectangular Tube
Mechanical Characteristics of Ferratic SS Hollow Pipe
Equivalent material of ASTM A312 SS Rectangular Hollow
Stock List of Stainless Steel Rectangular Hollow Tube
Stainless Steel Rectangular Pipe Tolerances
Nominal Wall Thickness of 321 SS Rectangular Tubing
Rectangular 304 Stainless Steel Pipe Minimum Wall Thickness
Dimensional Tolerances of Mild Steel SHS Erw Rectangular Hollow Section
Physical Specifications of 316 SS Rectangular Tube
Buy Galvanized Rectangular Steel Pipe of following Manufacturer

Spec Chart of Stainless Steel Rectangular Pipe

Rectangular Pipe Size	10 X 20, 12.75 X 25.4, 10 X 30, 15 X 30, 20 X 40, 20 x 50, 25 X 50, 20 x 60, 40 X 60, 40 X 80, 45 X 75, 50 X 100
Rectangular Tube Grades	TP - 304, 304L, 316, 316L, 201
Rectangular Pipe Standards	A312 - A358 - A409 - A554 - A778 - A789 - A790
Rectangular Tube Tolerance on Length	Commercial Length: 6000mm +/- 30mm Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm
Rectangular Pipe Finish	Polished Grit 120 - 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm,Mirror Polished

Types of ASTM A312 Seamless Hollow Tube

Stainless Steel Welded Rectangular Pipe

SS 316 Rectangular Pipe

Stainless Steel Rectangular Hollow Tube

polished bevel end rectangular 304 stainless steel pipe

40x60 galvanized rectangular steel pipe

50x100 ERW pre galvanized rectangular sch 40 steel pipe

Mild Steel SHS Erw Rectangular Hollow Section

321 SS Rectangular Tubing

Get Price list of Stainless Steel Welded Rectangular Pipe

201 316 stainless Rectangular diameter steel pipe
FOB Price: US $1200-2200 / Ton
stainless steel seamless Rectangular Pipe
FOB Price: US $1-4000 / Ton
price of Stainless Steel Rectangular Pipe
FOB Price: US $900-6000 / Metric Ton
stainless steel Rectangular pipe price
FOB Price: US $1500-2500 / Metric Ton
304 stainless steel Rectangular Pipe
FOB Price: US $1500-3000 / Ton
304l stainless steel Rectangular Pipe
FOB Price: US $1500-3000 / Ton

Stainless Steel Welded Rectangular Pipe manufacturers, Refer 316 SS rectangular tube Dimension

Chemical Properties of SS Rectangular Tube

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Mechanical Characteristics of Ferratic SS Hollow Pipe

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

Equivalent material of ASTM A312 SS Rectangular Hollow

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

Stock List of Stainless Steel Rectangular Hollow Tube

SS 316 Rectangular Pipe	SS 201 Rectangular Pipe
Stainless Steel Seamless Rectangular Pipe	SS Seamless Rectangular Pipe
Seamless SS Rectangular Pipes	Rectangular Stainless Steel Pipe
SS Rectangular Pipes	Stainless Steel Rectangular Pipe
304 Stainless Steel Rectangular Pipe	316L Stainless Steel Rectangular Pipe
Stainless Steel Rectangular Pipe Hollow Sections	Steel Rectangular Pipe
Stainless Steel Bright Annealed Rectangular Pipe	Steel Seamless Rectangular NB Pipes
Stainless Steel 201 Rectangular Pipes	Stainless Steel Rectangular 316 Pipe
Hot Rolled SS Rectangular Pipes	Steel Large Diameter Rectangular Pipe
Stainless Steel Rectangular ERW Pipe	Schedule 40 SS Rectangular Pipes

Stainless Steel Rectangular Pipe Tolerances

NPS Designator	Permissible Variations in Outside Diameter
NPS Designator	Over In.	Under In.
1/8 to 1-1/2, incl	1/64 (0.015)	1/32 (0.031)
Over 1-1/2 to 4, incl	1/32 (0.031)	1/32 (0.031)
Over 4 to 8, incl	1/16 (0.062)	1/32 (0.031)
Over 8 to 18, incl	3/23 (0.093)	1/32 (0.031)

Nominal Wall Thickness of 321 SS Rectangular Tubing

NPS Designator	Outside Diameter in.	Schedule 10S in.	Schedule 40S in.	Schedule 80S in.	Schedule 160 in.	Schedule XX in.
1/4	0.540	0.065	0.088	0.119
3/8	0.675	0.065	0.091	0.126
1/2	0.840	0.083	0.109	0.147	.188	.294
3/4	1.050	0.083	0.113	0.154	.218	.308
1.0	1.315	0.109	0.133	0.179	.250	.358
1 1/4	1.660	0.109	0.140	0.191	.250	.382
1 1/2	1.900	0.109	0.145	0.200	.281	.400
2	2.375	0.109	0.154	0.218	.343	.436
2 1/2	2.875	0.120	0.203	0.276	.375	.552
3	3.500	0.120	0.216	0.300	.438	.600
3 1/2	4.000	0.120	0.226	0.318		.636
4	4.500	0.120	0.237	0.337	.534	.674
5	5.563	0.134	0.258	0.375	.625	.750
6	6.625	0.134	0.280	0.432	.719	.864
8	8.625	0.148	0.322	0.500	.906	.875
10	10.750	0.165	0.365	0.500	1.125
12	12.750	0.180	0.375	0.500	1.312
14	14.000	0.188	0.375	0.500	1.406
16	16.000	0.188	0.375	0.500	1.594

ASME SA312 SS Rectangular Pipe stockholder, Stainless Steel 316 Hollow Tubes Dimension Chart

Rectangular 304 Stainless Steel Pipe Minimum Wall Thickness

Nominal Thickness		Minimum Thickness on Inspection		Nominal Thickness		Minimum Thickness on Inspection		Nominal Thickness		Minimum Thickness on Inspection
in.	mm	in	mm	in	mm	in	mm	in	mm	in	mm
0.068	1.7	0.060	1.5	0.294	7.5	0.257	6.5	0.750	19.0	0.658	16.6
0.068	2.2	0.077	2.0	0.300	7.6	0.262	6.7	0.812	20.6	0.710	18.0
0.091	2.3	0.080	2.0	0.307	7.8	0.269	6.8	0.843	21.4	0.736	18.7
0.095	2.4	0.083	2.1	0.308	7.8	0.270	6.9	0.854	21.7	0.756	19.2
0.113	2.9	0.099	2.5	0.312	7.9	0.273	6.9	0.875	22.2	0.766	19.5
0.119	3.0	0.104	2.6	0.318	8.1	0.278	7.1	0.906	23.0	0.783	20.1
0.125	3.2	0.109	2.8	0.322	8.2	0.282	7.2	0.937	23.8	0.820	20.8
0.126	3.2	0.110	2.8	0.330	8.4	0.289	7.3	0.968	24.6	0.847	21.5
0.133	3.4	0.116	2.9	0.337	8.6	0.295	7.5	1.000	25.4	0.875	22.2
0.140	3.6	0.122	3.1	0.343	8.7	0.300	7.6	1.031	26.2	0.902	22.9
0.145	3.7	0.127	3.2	0.344	8.7	0.301	7.6	1.062	27.0	0.929	23.6
0.147	3.7	0.129	3.3	0.358	9.1	0.313	8.0	1.083	27.8	0.956	24.3
0.154	3.9	0.135	3.4	0.365	9.3	0.319	8.1	1.125	28.6	0.984	25.0
0.156	4.0	0.136	3.5	0.375	9.5	0.328	8.3	1.156	29.4	1.012	25.7
0.179	4.5	0.157	4.0	0.382	9.7	0.334	8.5	1.218	30.9	1.066	27.1
0.187	43.7	0.164	4.2	0.400	10.2	0.350	8.9	1.250	31.8	1.094	27.8
0.188	4.8	0.164	4.2	0.406	10.3	0.355	9.0	1.281	32.5	1.121	28.5
0.191	4.9	0.167	4.2	0.432	10.4	0.378	9.6	1.312	33.3	1.148	29.2
0.200	5.1	0.175	4.4	0.436	11.1	0.382	9.7	1.343	34.1	1.175	29.8
0.203	5.2	0.178	4.5	0.437	11.1	0.382	9.7	1.375	34.9	1.203	30.6
0.216	5.5	0.189	4.8	0.438	11.1	0.383	9.7	1.406	35.7	1.230	31.2
0.218	5.5	0.191	4.9	0.500	12.7	0.438	11.1	1.436	36.5	1.258	32.0
0.219	5.6	0.192	4.9	0.531	13.5	0.465	11.8	1.500	36.1	1.312	33.3
0.226	5.7	0.196	5.0	0.552	14.0	0.483	12.3	1.531	38.9	1.340	34.0
0.237	6.0	0.207	5.2	0.562	14.3	0.492	12.5	1.562	39.7	1.367	34.7
0.250	6.4	0.219	5.6	0.593	15.1	0.519	13.2	1.593	40.5	1.394	35.4
0.258	6.6	0.226	5.7	0.600	15.2	0.525	13.3	1.750	44.5	1.531	38.9
0.276	7.0	0.242	6.1	0.625	15.9	0.547	13.9	1.781	45.2	1.558	39.6
0.277	7.0	0.242	6.1	0.656	16.6	0.573	14.6	1.812	46.0	1.586	49.3
0.279	7.1	0.244	6.2	0.674	17.1	0.590	15.0	1.968	50.0	1.772	43.7
0.280	7.1	0.245	6.2	0.687	17.4	0.601	15.3	2.062	52.4	1.804	45.8
0.281	7.1	0.246	6.2	0.719	18.3	0.629	16.0	2.343	59.5	2.050	52.1

Dimensional Tolerances of Mild Steel SHS Erw Rectangular Hollow Section

a	Thickness	±10%
b	Outside Dimension	±1% (±0.5mm min.)
c	Weight 1.On individual lengths 2.On lots of 10 tonnes	+10%,-8%
		+10%,-8%
		±7.5%
d	Squareness	90° ± 2°
e	Corner Radius	3t max.
f	Length	6m to 11m
g	End Finish	Plain End - Mill cut finish

Physical Specifications of 316 SS Rectangular Tube

Square Hollow Sections
SHS B X D mm	Thickness mm	Sec Area A cm²	Unit W kg/m	Outer Surface
SHS B X D mm	Thickness mm	Sec Area A cm²	Unit W kg/m	Area Per mm²
25 X 25	2.00	1.74	1.36	0.09
	2.60	2.16	1.69	0.087
	3.20	2.53	1.98	0.084
32 X 32	2.00	2.30	1.80	0.118
	2.60	2.88	2.26	0.115
	3.20	3.42	2.69	0.112
38 X 38	2.60	3.51	2.75	0.139
	3.20	4.19	3.29	0.136
	4.00	5.03	3.95	0.131
40 X 40	2.60	3.72	2.92	0.147
	3.20	4.45	3.49	0.144
	4.00	5.35	4.2	0.139
50 X 50	2.60	4.76	3.74	0.187
	2.90	5.25	4.12	0.185
	3.60	6.35	4.98	0.181
	4.50	7.67	6.02	0.177
60 X 60	2.60	5.8	4.55	0.227
	3.20	7.01	5.5	0.224
	4.00	8.55	6.71	0.219
	4.80	10.01	7.85	0.215
72 X 72	3.20	8.54	6.71	0.272
	4.00	10.47	8.22	0.267
	4.80	12.31	9.66	0.263
80 X 80	3.20	9.57	7.51	0.304
	4.00	11.75	9.22	0.299
	4.80	13.85	10.87	0.295
91.5 X 91.5	3.60	12.32	9.67	0.347
	4.50	15.14	11.88	0.343
	5.40	17.85	14.01	0.338
100 X 100	4.00	14.95	11.73	0.379
	5.00	18.36	14.41	0.374
	6.00	21.63	16.98	0.369
113.5 X 113.5	4.80	20.28	15.92	0.429
113.5 X 113.5	5.40	22.6	17.74	0.426
132 X 132	4.80	23.83	18.71	0.503
132 X 132	5.40	26.6	20.88	0.5
150 X 150	4.00	22.95	18.01	0.579
	5.00	28.36	22.26	0.574
	6.00	33.63	26.4	0.569
	8.00	43.79	34.38	0.559
180 X 180	4.00	27.75	21.78	0.699
	5.00	34.36	26.97	0.694
	6.00	40.83	32.05	0.689
	8.00	53.39	41.91	0.679
220 X 220	6.00	50.43	39.59	0.849
	8.00	66.19	51.96	0.839
	10.00	81.43	63.92	0.829
	12.00	96.14	75.47	0.818
250 X 250	6.00	57.63	45.24	0.969
	8.00	75.79	59.5	0.959
	10.00	93.49	73.34	0.949
	12.00	110.54	86.77	0.938

Available Thickeness of UNS S30400 Rectangular Tube 2 to 16 MM

Buy Galvanized Rectangular Steel Pipe of Following Manufacturer

DMV

Sanyo Special Steel

Sumitomo

Sandvik

Tubacex

Tachen Taiwan
