Stainless Steel Slot Pipe
ASTM A554 304 Square Pipe Suppliers
Stainless Steel Slot Pipe
ASTM A554 304 Square Slotted Pipe
Slotted Stainless Steel Pipes
Stainless Steel Round Slotted Pipes stockist, Buy ASTM A554 304 Square Slotted Pipe at best price
Table of Content
- Stainless Steel Slot Pipe Specification Chart
- Most Selling Types of Slotted Stainless Steel Pipes
- Chemical Formula of SS Slotted Pipe
- Mechanical Behaviour of ASTM A554 SS Slot Pipe
- Equivalent of Deep well slotted casing pipe
- Size Range of 304 SS Double Slot Pipe
- Stainless Steel 304 Slotted Pipe Outside Diameter
- Features of ASTM A554 304 Square Slotted Pipe
Stainless Steel Slot Pipe Specification Chart
| Product | Stainless Steel Double Slot Square Tubes |
| Specifications | ASTM A312, ASTM 213, ASTM A358, ASTM A268, ASTM A269, ASTM A554, ASTM A270, ASTM A789, ASTM A790 |
| Type | Hot/Cold Drawn, Hot/Cold Rolled, Casting, Forged |
| Surface Finish | Pickling, Annealed, NO.1, NO.2D, NO.2B, BA, NO.3, NO.4, NO.240, NO.320, NO.400, HL, NO.7, NO.8, BA/2B |
| Slot Width and Height | 10mm to 30mm |
| Side Length | 40mm to 80mm |
| Tolerance | According to the Standard. |
| Inner Packing | Plastic bag (every pipe/ tube is sleeved in plastic bag individually) |
| OD | 25*25 to 50*100 |
| Origin of Goods | India, Europe, Japanese, UK, Korea, Thailand, Taiwan. |
| Packing | Wooden Pallets, Export Sea-Worthy Packing |
| Test Certificates | As per EN 10204 3.1 |
| Inspection | Seller Inspection, Buyer Inspection or Third Party Inspection |
Most Selling Types of Slotted Stainless Steel Pipes

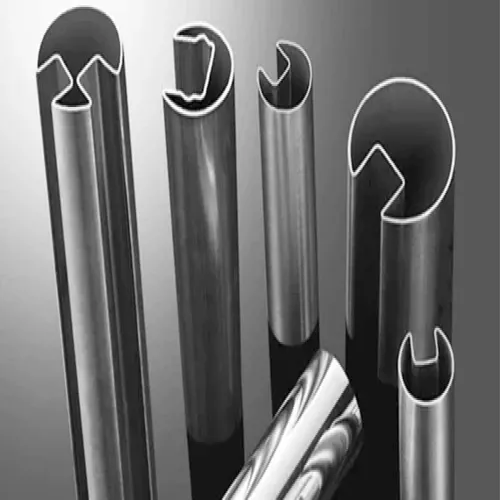

Stainless Steel Slotted Pipe
SS Slotted Pipe
A554 Stainless Steel Single Slot Round Pipe
Stainless Steel 304 Slotted Pipe
304 SS Double Slot Pipe
321 Stainless Pipe Slot Pipe
316 balustrade square stainless steel slot pipe

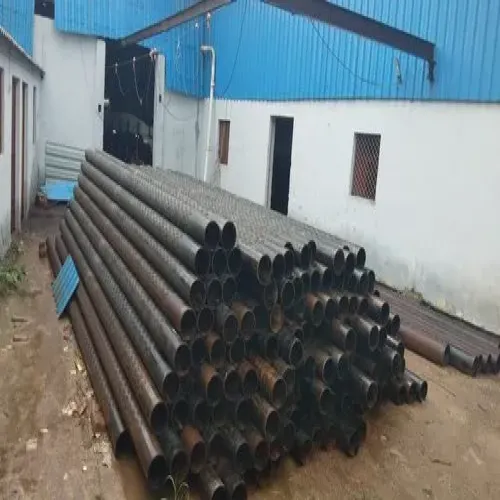

Deep well slotted casing pipe
Chemical Formula of SS Slotted Pipe
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
| 304 | min. | 18.0 | 8.0 | |||||||||
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
| 304L | min. | 18.0 | 8.0 | |||||||||
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
| 304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
| max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
| SS 310 | 0.015 max | 2 max | 0.015 max | 0.020 max | 0.015 max | 24.00 26.00 | 0.10 max | 19.00 21.00 | 54.7 min | |||
| SS 310S | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 0.75 max | 19.00 21.00 | 53.095 min | |||
| SS 310H | 0.04 0.10 | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 19.00 21.00 | 53.885 min | ||||
| 316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
| 317 | 0.08 max | 2 max | 1 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 57.845 min | ||||
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 11.00 15.00 | 57.89 min | |||
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 5(C+N) 0.70 max | |||
| SS 321H | 0.04 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 4(C+N) 0.70 max | |||
| 347/ 347H | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 20.00 | 9.0013.00 | |||||
| 410 | min. | 11.5 | ||||||||||
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | 0.75 | |||||
| 446 | min. | 23.0 | 0.10 | |||||||||
| max. | 0.2 | 1.5 | 0.75 | 0.040 | 0.030 | 30.0 | 0.50 | 0.25 | ||||
| 904L | min. | 19.0 | 4.00 | 23.00 | 0.10 | |||||||
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 | |||
Slotted Stainless Steel Pipes Manufacturers, 304 SS Two Slot Pipe stockist.
Mechanical Behaviour of ASTM A554 SS Slot Pipe
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304/ 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 310 / 310S / 310H | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 306/ 316H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 317 | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 321 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 347 | 8.0 g/cm3 | 1454 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi 71000 , MPa 490 | Psi 32000 , MPa 220 | 35 % |
Equivalent of Deep well slotted casing pipe
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 304H | 1.4301 | S30409 | – | – | – | – | – |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
| SS 310H | – | S31009 | – | – | – | – | – |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS 316H | 1.4401 | S31609 | – | – | – | – | – |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| SS 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
| SS 321 | 1.4541 | S32100 | SUS 321 | – | – | – | X6CrNiTi18-10 |
| SS 321H | 1.4878 | S32109 | SUS 321H | – | – | – | X12CrNiTi18-9 |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | – | – | – | X6CrNiNb18-12 |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Check A554 Stainless Steel Single Slot Round Pipe Dimension, Exporter of Polished SS Square Slotted Pipe suppliers
Size Range of 304 SS Double Slot Pipe
Size (outer Diameter)in mm | Slot size ( Width x Depth) | Suitable for Glass |
50mm x 25mm | 15mm x 15mm | 8mm to 12mm |
60mm x 40mm | 24mm x 24mm | 12mm to 19mm |
Stainless Steel 304 Slotted Pipe Outside Diameter
| Outside Diameter | "U" Channel | Suitable For |
| ( Slot Size ) | W/T of glass | |
| 42.4 mm | 20 X 20 mm | 8 ~ 15 mm |
| 50.8 mm | 15 X 15 mm | 8 ~ 12 mm |
| 63.5 mm | 20 X 20 mm | 8 ~ 15 mm |
| 76.2 mm | 25 X 25 mm | 8 ~ 22 mm |
Stainless Steel 304 Slotted Pipe Distributors in India. View UNS S30400 Two Slot/ Square Slot/ Round Sloted Pipes price list
Features of ASTM A554 304 Square Slotted Pipe
- High Corrosion Resistance
- Easy installation
- Low maintenance
- Low Labour costs
- No Welding Requires at site.
